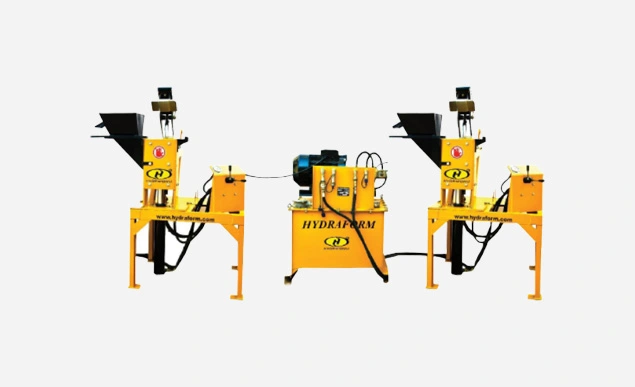

Interlocking blockmaking machine +- 4000 blocks per day (M7M3)

• 2 Compression Chambers
• 12 Months Machine Warranty
• Free mould included in machine chamber
• Road Tyres
• Training Available
• ±14-18 Operating Staff, 9 per team
• Machine weight: ±800kg (excl. crating)

HYDRAFORM STANDARD 220MM INTERLOCKING BLOCK
This block is used to build load bearing walls using mortar in the super structure, by dry-stacking the blocks on each other in the wall. This block is used for all wall construction in housing and walling. This block will be perfect for ground + 1 construction.

HYDRAFORM STANDARD 180MM INTERLOCKING BLOCK
This 180mm wide, dry-stacking block is used in the construction of load bearing walls for single storey structures only. This block can be used on the first floor of double-storey structures, so as to reduce the weight, but cannot be used in the construction of the ground floor of a double storey structure. The 180mm block uses 20% less material than the 220mm block.

HYDRAFORM STANDARD 150MM INTERLOCKING BLOCK
This 150mm wide, dry-stacking block is used in the construction of non-load bearing walls for internal walls providing a ring beam is used. This block can be used in the construction of multi-storey structures as an in-fill wall panel between concrete pillars or steel columns. The 150mm block uses 30% less material than the 220mm block.

HYDRAFORM STANDARD 140MM SEMI-INTERLOCKING BLOCK
This 140mm wide block is semi dry-stacking, and a wet cement slurry is poured between the two vertical joints of the blocks. This block is used for internal wall construction and as an in-fill wall panel between concrete pillars or steel columns. The 140mm block uses 36% less material than the 220mm block.

HYDRAFORM LONG BLOCK FOR CORNER CONSTRUCTION
This block is made on any of the Standard Hydraform moulds by double filling the block compression chamber, if the material allows. The long block is used for corner construction and replaces the need for a half block. The daily production of long blocks must be 10% of the daily production of standard blocks.

HYDRAFORM CONDUIT 220MM INTERLOCKING BLOCK
This 220mm wide, dry-stacking block is used to lay the electrical conduit horizontally within the wall structure so that minimal wall chasing is required. This block can also be used in seismic areas (as per engineer’s design) to lay steel re-bar within the wall structure to strengthen the stucture but also allow enough flexibility to resist collapse during an earthquake.

HYDRAFORM CAPPING 220MM BLOCK
This 220mm wide, dry-stacking block is used for capping of boundary walls and for window sills.

The machine comes standard with a one mould option.
